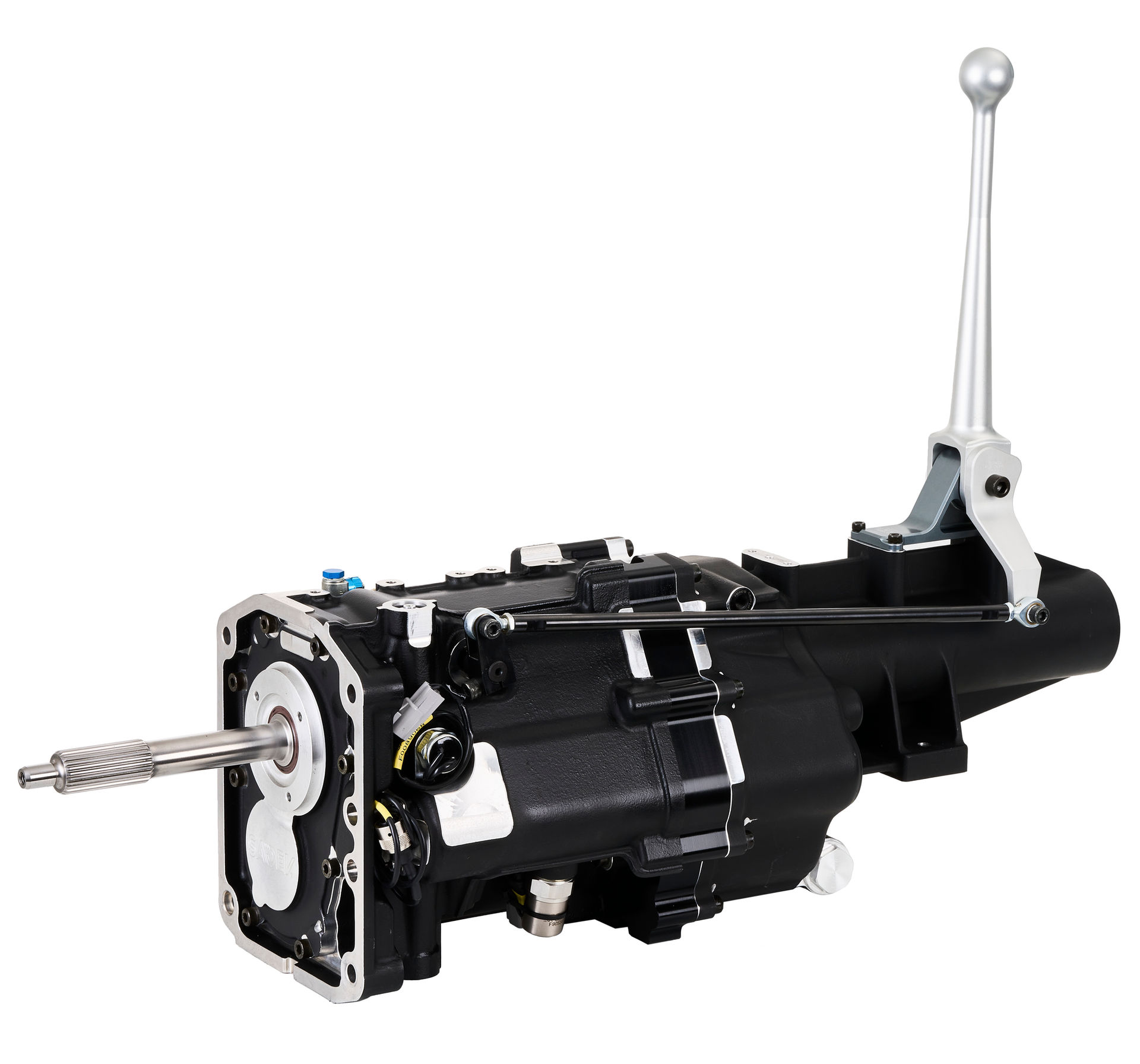

A very compact, strong, light and efficient in-line transmission for high powered engines used in many applications such as GT, Off-road, Drift, etc, while keeping overall cost in mind.
5 or 6 speeds sequential transmission
High torque and power capacity
Drop gear ratio
Torsion bar system for extreme load
Low drag efficiency
Integrated oiling system
Long tail version, Weight: 96 lbs
Short version, Weight: 83 lbs
A very compact, strong, light and efficient in-line transmission for high-powered engines used in many applications such as GT, Off-road, Drift, etc., while keeping overall cost in mind.
5 or 6 speeds sequential transmission
High torque and power capacity
Drop gear ratio
Torsion bar system for extreme loads
Low drag efficiency
Integrated oiling system
Long tail version, Weight: 96 lbs
Short version, Weight: 83 lbs
KEY FEATURES
5 or 6 speeds sequential transaxle
Low drag efficiency – transmit more power to the wheels
Over 75 interchangeable gear ratios available
Electric reverse lockout solenoid
Internal torsion bar to absorb extreme power and torque
1350 slip yoke included for the long tail version
Integrated oiling system with directed lubrication
Long tail version, Weight: 96 lbs
Gear inspection ports for ease of maintenance
Short tail version, Weight: 83 lbs
Specific input shafts
Mechanical sequential gear selection system
Paddle-shift unit available
Flat shift sensor
Contactless gear position sensor
Hydraulic throw out bearing
Straight cut gears with ground and optimized profile teeth
Gear engagement made by dogs
High strength carburizing steel (aerospace grade)
ADDITIONAL FEATURES
Shot peening on all internal components for added durability
Painted AS7G aluminum casings help prevent corrosion
O-ringed case faces
Integrated, mechanically driven Gerotor oil pump
Lubrication lines through the casing
Directed and pressurized lubrication on the gears and Ring & Pinion
Integrated oil suction screen
Fittings for external oil cooler
Magnetic drain plugs
Output flanges available (1315 / 1350 / BMW flector)
